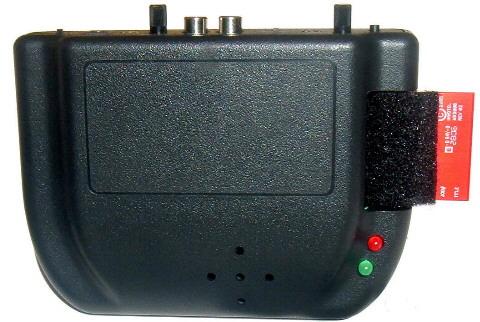

SX9800 digital player/recorder

Click here to order this item

The SX9800 is a brilliantly engineered state-of-the-art digital player /recorder with full user record-ability and ease of use.

It is designed to provide a continuous-play digital audio system for music/message-on-hold, product/service announcement, background music or any other application requiring high quality audio playback.

Unlike other digital players the SX9800 utilizes “True audio recording” - the voice and audio programs are recorded directly into solid state memory in their natural, uncompressed form providing superior quality voice and music reproduction. This allows the SX9800 un-restricted recording ability from any audio source in any format e.g. Windows .wav, CD, MP3, WMA, even Windows media player with SRS surround sound and WOW effects.

The audio program can be loaded into the SX9800 in several simple ways:

  • Card Load - by inserting the Flash card, a cutting edge, stamp sized re-record-able card (a pre-recorded card with “thank you for holding…” and Royalty Free music by professional male and female voice artist talents is included)
  • “Email Auto Load”™- a revolutionary new way to automatically record into SX9800 via email
  • “CD Auto Load” - a convenient, easy, and automatic recording method into SX9800 using a standard CD /DVD player
  • Direct Load - a simple push button recording from any audio source such as a PC speaker jack, CD player, radio, tape, DVD player, iPod or MP3 player, etc.
  • Microphone Load - a simple push button recording using a provided Headset & microphone

User Instant Message™ This exclusive feature provides user record-able short messages to be played back at 30 second intervals during the main program playback professionally with Fade in/ Fade out effects. One short message (maximum of 15 seconds) can be instantly recorded by the user via the included rich sounding microphone. All integrated, No PC connection, No USB ports or other ports to worry about, No software installation, It is truly an enjoyable Plug & Play operation. With “User Instant Message”™ Personalized messages can easily be done by anyone and be updated effortlessly and instantly anytime.

“Email Auto Load”™ SX9800 is the 1st device in the world with a new exclusive feature- it can be automatically recorded by playing an email. The SX9800 is connected via a provided audio cable to a PC speaker jack and remains connected at all times (the cable length can be expanded up to 1000 feet). When an email that contains a special audible code is played on the PC, the SX9800 automatically starts its recorder and records the new audio content and then resumes its normal playback cycle. This way a program audio update is just a simple email play. All other songs and music or audio played on the PC will not be recorded.

“CD Auto Load” The SX9800 can be loaded via a CD player or DVD player automatically. The device is connected to a standard CD player or DVD player via a provided audio cord. The audio program CD contains a special audible code and when is inserted into the CD player, and play is started, it automatically triggers the SX9800 into record mode and it records the audio content. The SX9800 then resumes its normal playback cycle and the CD player stops on its own. This way a program audio update can be done by just inserting a CD, hitting play and walking away.

Microphone/Headset: The SX9800 comes complete with a headset & adjustable microphone that is simply inserted into a jack on the device. The recording can be done by just pushing one button on the SX9800; the rich sounding microphone allows full user record-ability. The SX9800 can even record from multiple sources at the same time, a PC, CD player, iPod or other audio source may be connected to its “Audio IN” jack so that audio can be recorded as a "background" while microphone recording is taking place.

There is truly no limit to what can be done with this brilliant device.

The SX9800 player/recorder is the most flexible and easy to use player of its kind, with a list of latest technology features not found in other players, these include:

  • Tone control - this is a very important control found on professional players. This makes the audio sound much better on some phone systems. It controls the frequency of the audio playback and it can make it sound richer with super BASS.
  • Dual Banks - there are 2 Banks to play/record into which allows a second bank to hold recordings for “Holidays”, “special” sales/events, etc. a switch on the SX9800 controls this function. Using this switch the SX9800 instantly starts its playback from the 2nd bank. It makes it so easy and convenient during the “holiday times” or anytime a different playback is needed.
  • Zero moving parts - 100% digital with no built-in CD or cassette player to wear and tear
  • Zero power storage - messages and music are retained all the time in power outage, playback automatically resumes when power is restored
  • All-solid-state design - no mechanical moving parts at all
  • Consistent audio output with absolutely no degradation in the sound quality throughout the product’s life
  • Highest level audio quality and fully maintenance free
  • 1 to 16 minutes of audio recording capability
  • Dual outputs of 8 ohm and automatic 600 ohms
  • Built-in speaker transducer
  • Audio volume control with 1000 milliwatts of power
  • Built-in fade in / fade out producer
  • Visual VU: Multi color LED audio level indicators illuminate according to the audio level
  • CD level audio quality
  • Special coded encryption technology
  • Attractive design enclosure with wall mounting capability
  • 5-year parts and labor warranty
  • Manufactured in the USA in high quality ISO 9002 factory

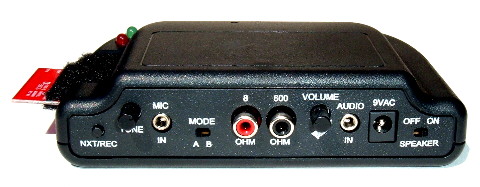

User controls on SX9800:

  • Record button tactile switch
  • Tone control potentiometer with center tab
  • Microphone IN jack 3.5mm
  • Bank select slide switch Mode A B (Bank1 - Bank2)
  • 8 ohm RCA jack
  • 600 ohm ohm RCA jack
  • Volume control potentiometer with center tab
  • Audio In jack 3.5mm
  • 9-12 VAC jack
  • Speaker transducer ON-OFF

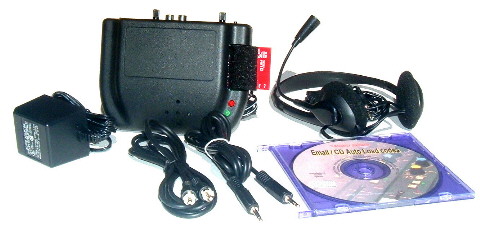

Everything is included with SX9800:

  1. SX9800 digital player/recorder - ready to play out of box
  2. AC power adapter 110V to 9-12VDC
  3. Stereo Headset with adjustable microphone with volume control
  4. MX9008 Flash card pre-recorded with music-on-hold (re-record-able)
  5. RCA to RCA audio cord 6 feet long
  6. 3.5mm male to 3.5mm male audio cord 12 feet long
  7. User’s manual

Optional items available for SX9800:

  • Blank MX9008 or MX9017 Flash cards
  • Royalty Free custom production - professionally recorded by voice talents.

Click here to view the product specifications and manual (PDF Format)
